26″ Wheels |100mm Fork | Alloy
Dirt jump and pumptrack destroyer
Where it all began… the Dr Jekyll is a part of our legacy. It was our first ever model that we introduced 20 years ago. At Identiti, we all started out riding dirt jumps and it seems fitting to bring back this iconic bike in 2018, it’s in our blood and we’re not going to abandon our roots. It’ll float through the trails or blast the pumptrack.
We’ve kept original features such as the Adjustable Dropout System that keeps everything together. Bolting the brake caliper to the drop out allows us to keep the brake aligned when you pull the wheel back to tension the chain.
The ADS sliding drop outs on the AKA and Dr Jekyll were actually designed and in our vaults for a couple of years prior to working on the new hardtails. We wanted to make something new and tidy for with a built-in tensioner that offers 15mm of adjustment.

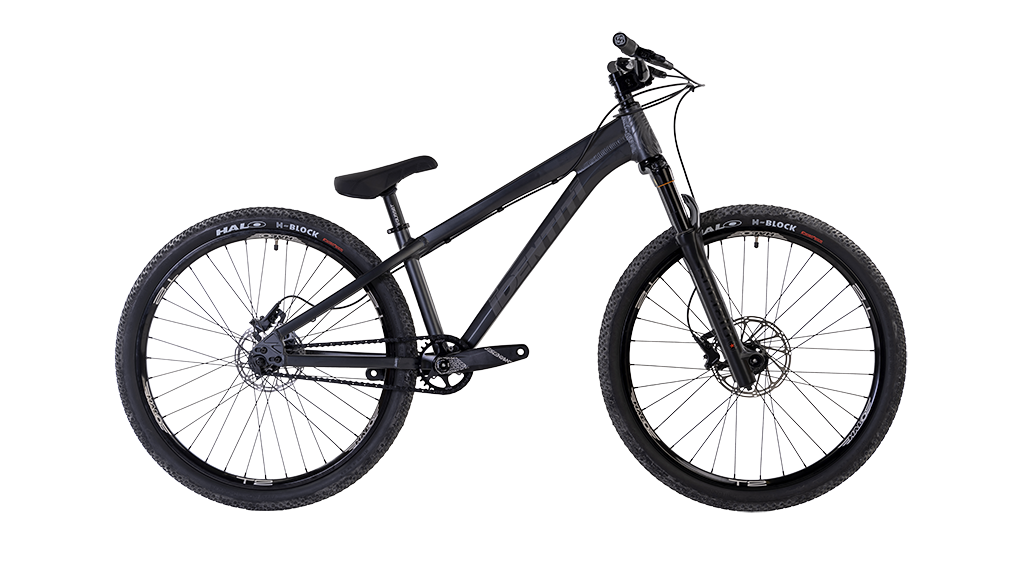

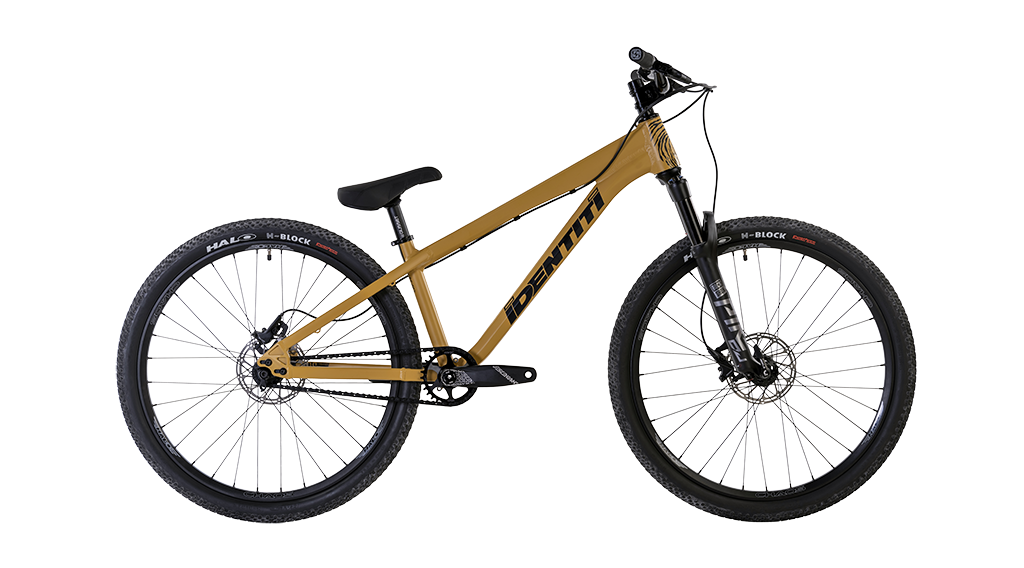

You’ll see that there’s more colour options now too; Woburn Sand or Black Flash.
Features
Geometry
| Medium | Large | |
|---|---|---|
|
S
Stack |
559 | 559 |
|
R
Reach |
400 | 430 |
|
ETT
Effective Top Tube |
592 | 622 |
|
HT
Head Tube Length |
115 | 115 |
|
ST
Seat Tube Length |
315 | 315 |
|
BBD
Bottom Bracket Drop |
15 | 15 |
|
CS
Chain Stay Length |
395-410 | 395-410 |
|
WB
Wheelbase |
1052-1076 | 1082-1097 |
|
HA
Head Tube Angle |
68.5° | 68.5° |
|
ESA
Effective Seat Tube Angle |
71° | 71° |
Technical Information
| Headset | ZS44 Upper, ZS56 Lower |
|---|---|
| Seat Post | 30.9mm |
| Seat Clamp | 34.9mm |
| BB Shell | 73mm threaded |
| Wheelsize | 26" |
| Max Tyre | 26" - 2.35" or 60mm |
| Rear Axle | 135mm x 10mm (142x12mm with optional bolt through plates) |
| Min Rotor | 140mm (IS) |
| Max Rotor | 180mm (IS) |
